How It Works

1 out of 6

With the sequencer, you can automatically cycle through an entire sequence, control the speed of the sequence using dimmers or sensors, run the sequence 4 ways: forwards, backwards, pendulum, or random, and swap automation for full control and step through each part of the sequence using a button, sound trigger, or any other high-signal input.

2 out of 6

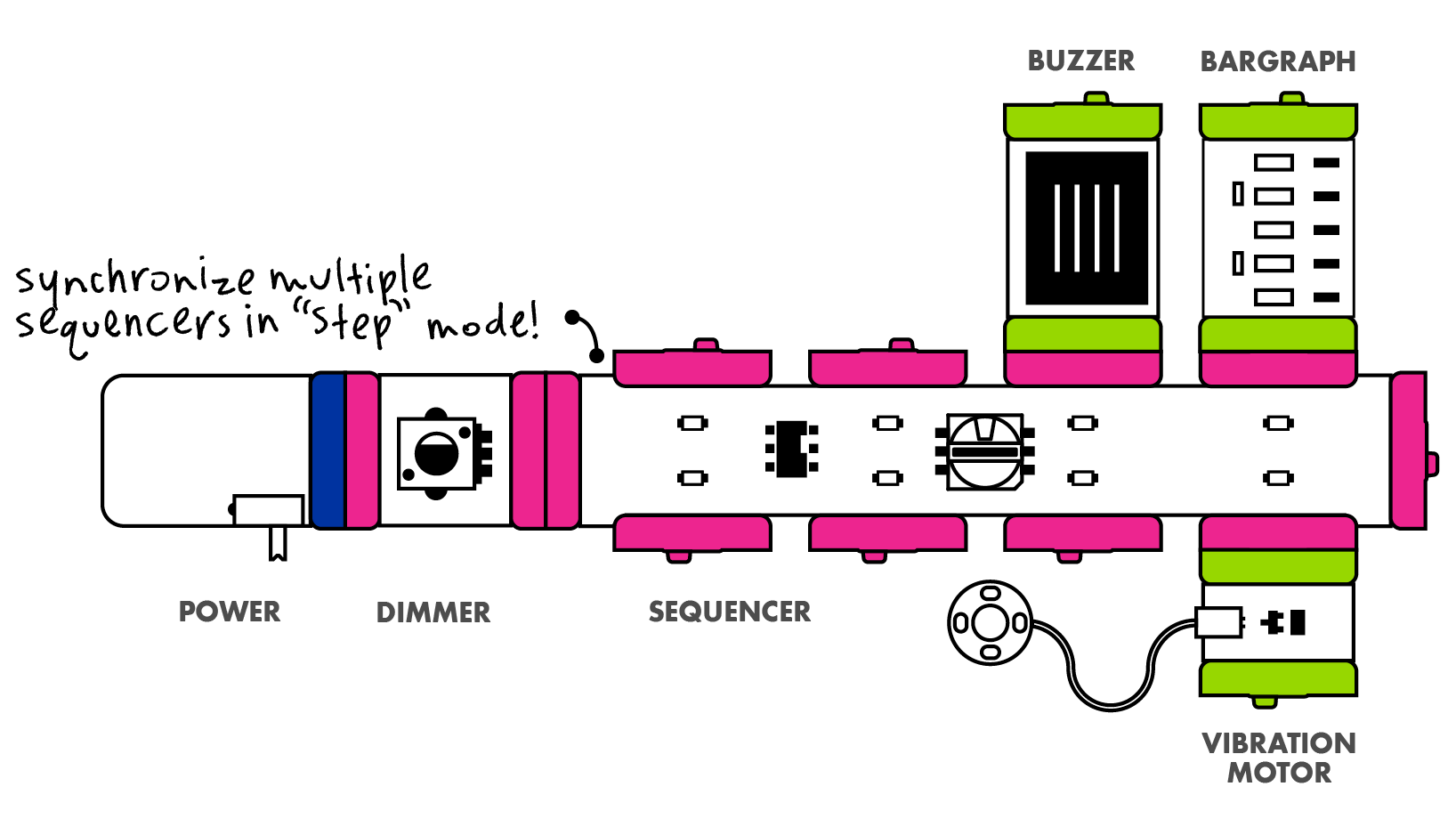

There are 2 clock modes that control when the Bit transitions from sequence step to sequence step. In "step" mode, the sequence transitions to a new sequence step on input low-to-high transitions. In this mode, the clock output is high when the input is above 2.5V, and the clock output is low when the input is below 2.5V.

3 out of 6

In "speed" mode, the sequence transitions to a new sequence step at a fixed frequency. The step frequency is proportional to the voltage at the input. At 0V input, the frequency is 0Hz (the sequencer does not step). At 5 volts the step frequency is approximately 80Hz.

4 out of 6

Also in "speed" mode, the clock output is a square waveform at the step frequency. The 4 sequence modes control the order in which the 8 sequenced outputs are activated. At any given time, there is exactly 1 of the 8 sequenced outputs set to 5V. All other outputs are set to 0V.

5 out of 6

"Forward" mode sets output 1 to 5V, then on the next step output 2 is set to 5V, and so on. After activating each output in turn, the sequence then continuously repeats, starting at output 1. "Backwards" mode is the same as "forward" mode, except that the sequence steps from output 8 to output 1 and is set to 5V at each step.

6 out of 6

"Pendulum" mode sets output 1 to 5V, then on the next step output 2 is set to 5V, and so on. Upon reaching output 8, the sequence reverses and steps down from 7 to 1. "Random" mode sets a randomly selected output to 5V at each step.

Product Specs
Reviews
FAQs
Users
Ages 8+
Grades 3+
Sizes
Height 0.5"
Width 3.75"
Length 7.5"
Weight
0.01 kg/ 0.02 lbs
Model No.
650-0008
UPC
810876020299
